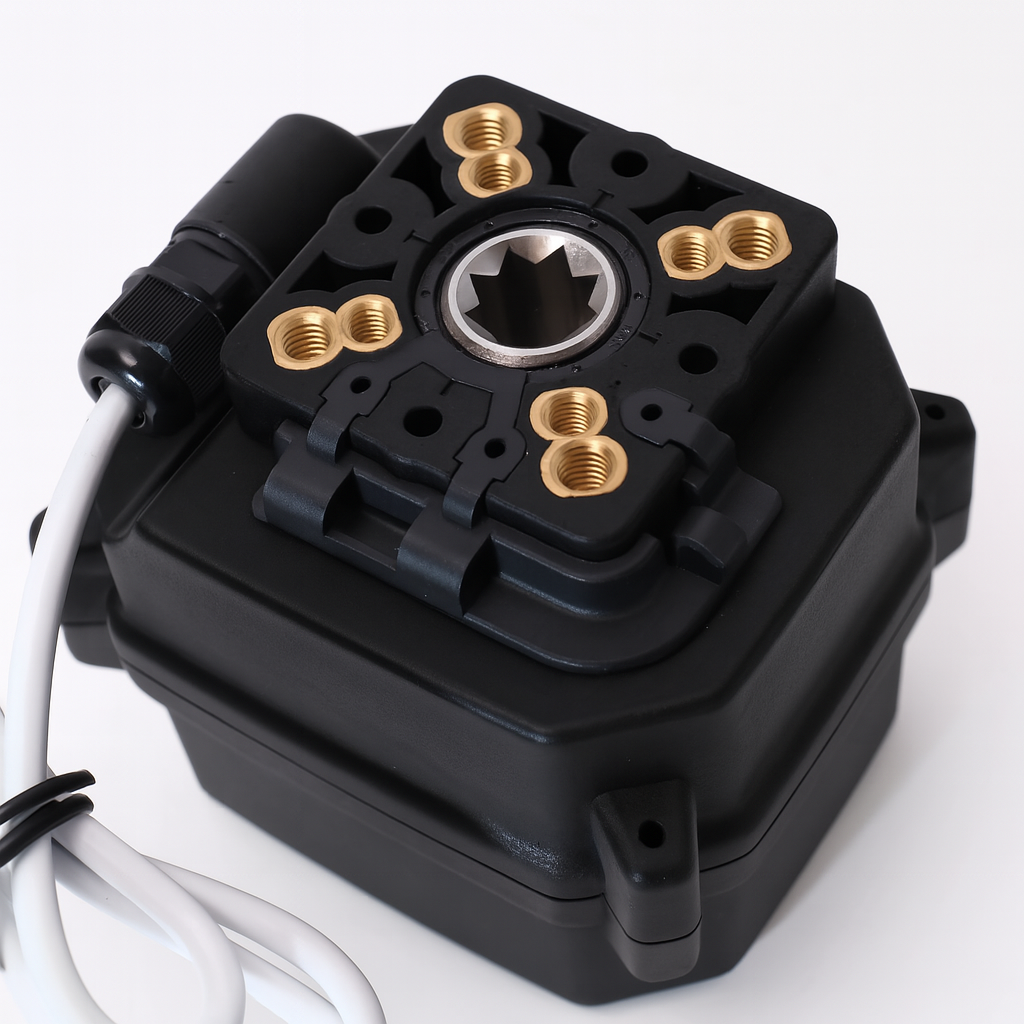

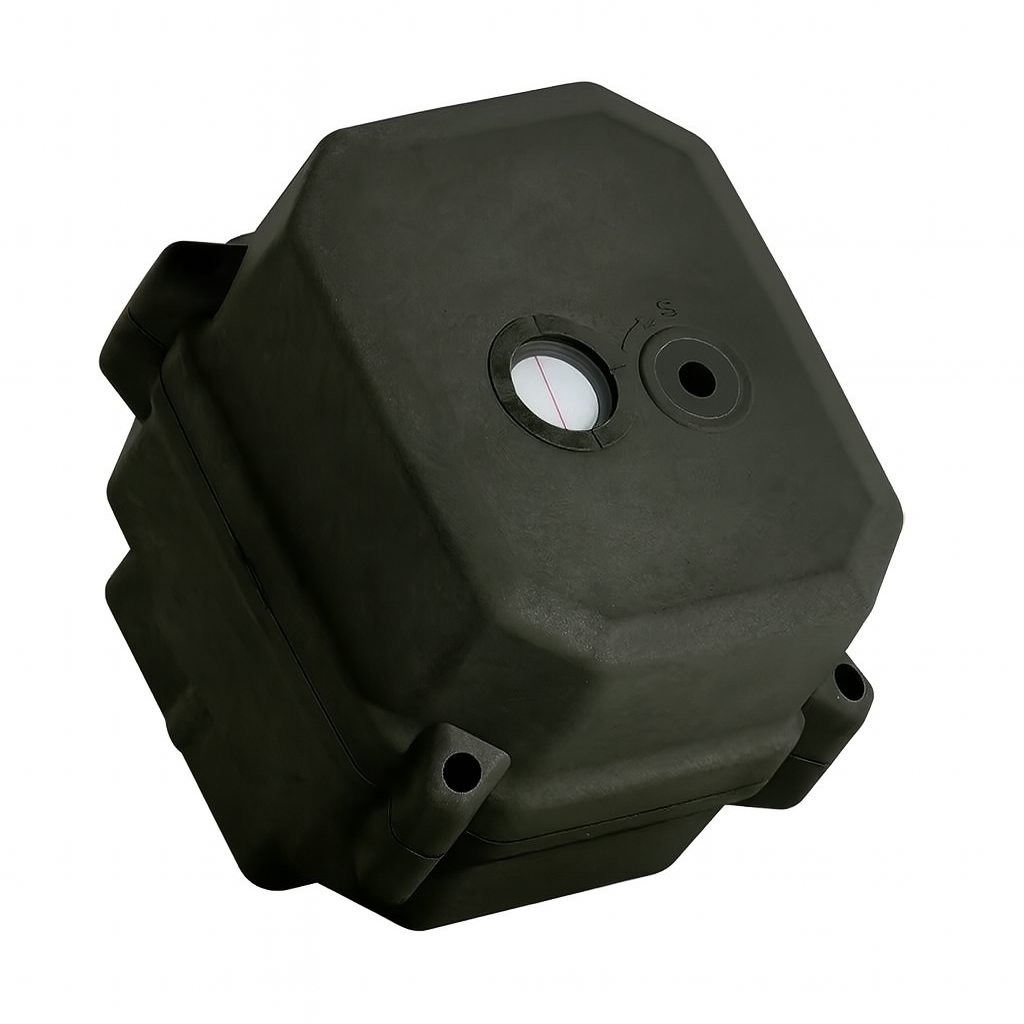

12V Electric Actuator Valve with Manual Override
- Low stock - 6 items left
Get it between -
Upgrade your pressure washing system with the same actuator trusted and used on every HH&SW CleanSwitch Remote Downstream Injector Bypass setups. This 12V motorized electric actuator features a compact design, manual override functionality, and high-torque performance, and is built for reliability in harsh wash environments.
Product Features:
- IP67 Protection Class
- 12VDC for seamless integration with standard deep cycle or lithium power setups
- Manual override, which allows manual operation in case of power failure or service
- Proven Performance: Same robust, weatherproof actuator used on all HH&SW CleanSwitch remote downstream bypass setups
- Valve Compatibility: Mounts to most DN10 and DN15 high-pressure ball valves utilizing an adapter key (sold separately)

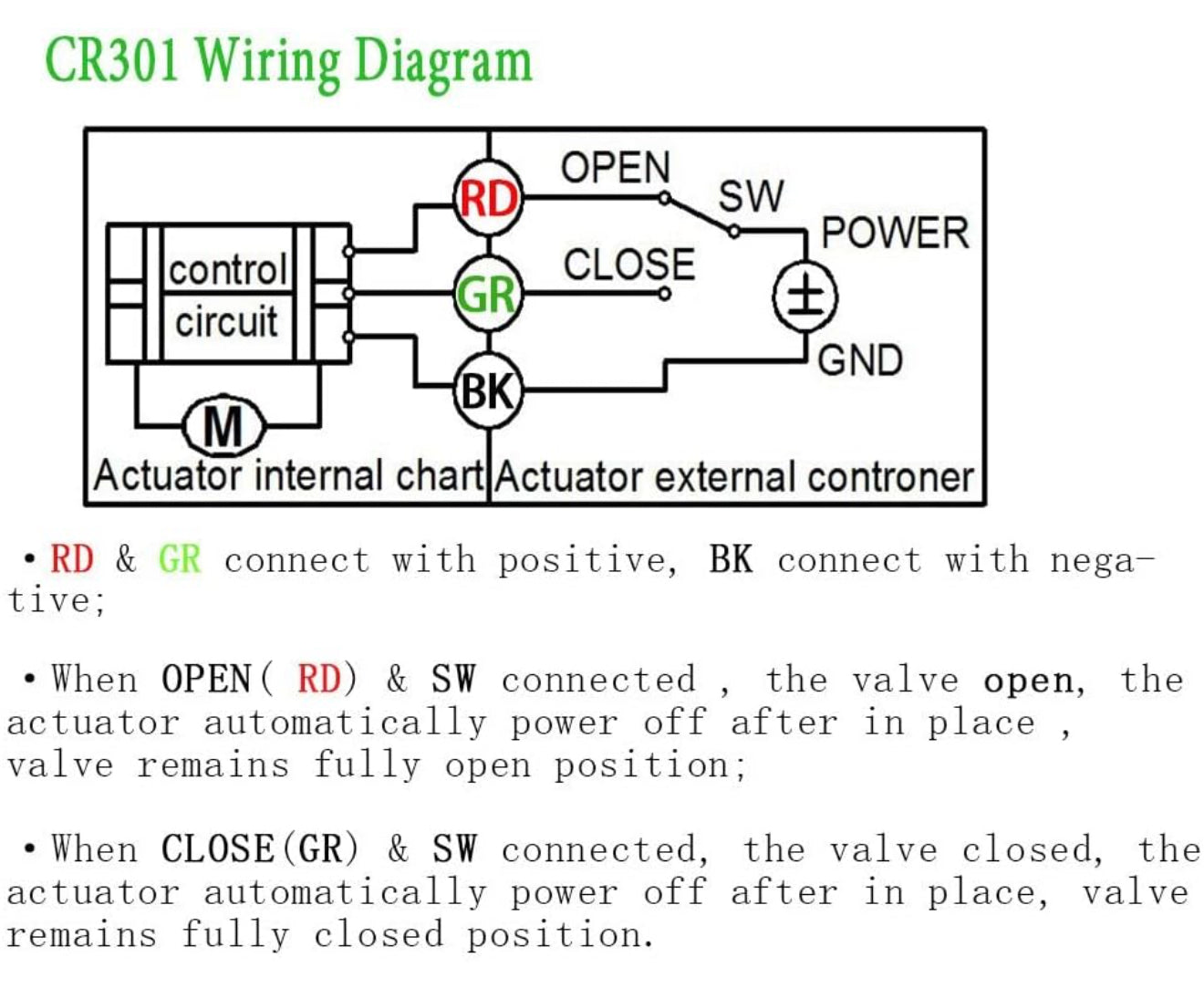

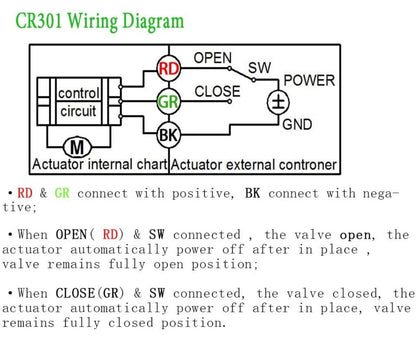

- CR301 3-wire wiring (no capacitors to fail): see images for wiring details and diagram
- Wiring Cable: Includes integrated 3.6 meter (approximately 12 feet) #18/3C pre-wired cable for easy connection
Ideal For:
- Remote downstream injector bypass systems
- Electric control upgrades for manual valves
- Soft wash and pressure wash rig builders looking for a reliable actuator solution
Note: This listing is for the actuator only. DN10/DN15 ball valve sold separately.
