Honda GX200 5.5 HP Gas Engine – 3/4" Horizontal Shaft | Electric or Recoil Start

The Honda GX200 5.5 HP Gas Engine is designed for professional cleaning contractors and commercial equipment applications where dependable power, fuel efficiency, and long-lasting durability are essential. Featuring Honda's proven 196cc, 4-stroke OHV design, this compact engine delivers consistent performance for a wide range of gas-powered equipment.

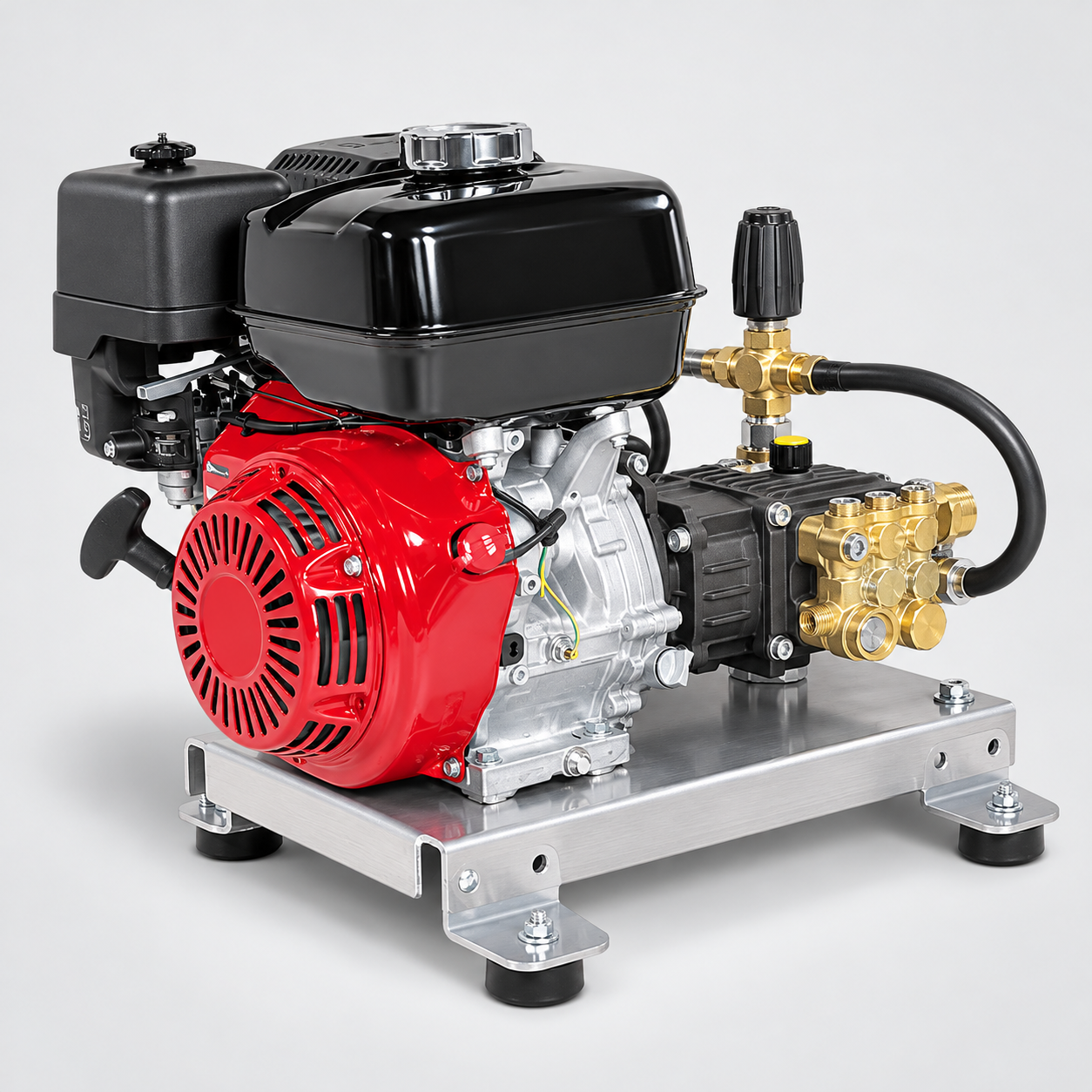

This engine is a perfect upgrade for repowering your existing gas softwash system, building your own gas-powered softwash system from scratch, or powering a smaller-GPM pressure washer build. Its 3/4-inch keyed horizontal shaft allows compatibility with properly sized pumps, pulleys, and drive assemblies, making it an excellent choice for both equipment replacements and custom builds. Available with either manual recoil start or electric start with recoil backup, the Honda GX200 provides the flexibility to configure your equipment to your needs.

Key Features:

• Honda GX200 commercial-grade gas engine with 196cc displacement

• 5.5 HP power output at 3,600 RPM

• Durable 4-stroke OHV engine design for reliable performance and fuel efficiency

• 3/4-inch keyed horizontal straight shaft with 3/16-inch keyway

• Available with electric start and manual recoil backup or manual recoil start only

• Perfect for repowering existing gas-powered softwash systems

• Excellent choice for custom gas softwash system builds and trailer-mounted equipment

• Suitable for smaller-GPM pressure washer builds with properly matched pumps

• Cast iron cylinder sleeve for increased durability and extended service life

• Honda Oil Alert system helps protect the engine from low-oil operation

• Dual-element air cleaner provides protection against dirt and airborne debris

• Forced-air cooling system helps maintain operating temperatures

• Compact design allows integration into compatible equipment configurations

• Dependable Honda performance for professional and commercial applications

Specifications:

• Brand: Honda

• Manufacturer: Honda Motor Co.

• Engine Model: GX200

• Part Numbers: GX200UT2-QX2 / GX200UT2-QXE2

• Engine Type: 4-Stroke OHV, Single Cylinder

• Displacement: 196cc

• Horsepower: 5.5 HP @ 3,600 RPM

• Maximum Torque: 9.1 ft-lbs @ 2,500 RPM

• Fuel Type: Unleaded Gasoline

• Fuel Tank Capacity: 0.83 Gallons

• Engine Oil Capacity: 0.63 US Quarts

• Shaft Orientation: Horizontal

• Shaft Type: Straight, Keyed

• Shaft Diameter: 3/4"

• Shaft Keyway: 3/16"

• Shaft Length: 2-5/8" Overall / 2-5/16" Usable

• Shaft Internal Thread: 5/16"-24

• Shaft Rotation: Counterclockwise (viewed from PTO shaft side)

• Cooling System: Forced Air

• Air Cleaner: Dual Element

• Lubrication System: Splash Lubrication with Honda Oil Alert

• Starting System: Manual Recoil or Electric Start with Recoil Backup

• Dry Engine Weight: Approximately 35 lbs (Recoil) / 38 lbs (Electric Start)

Available Options:

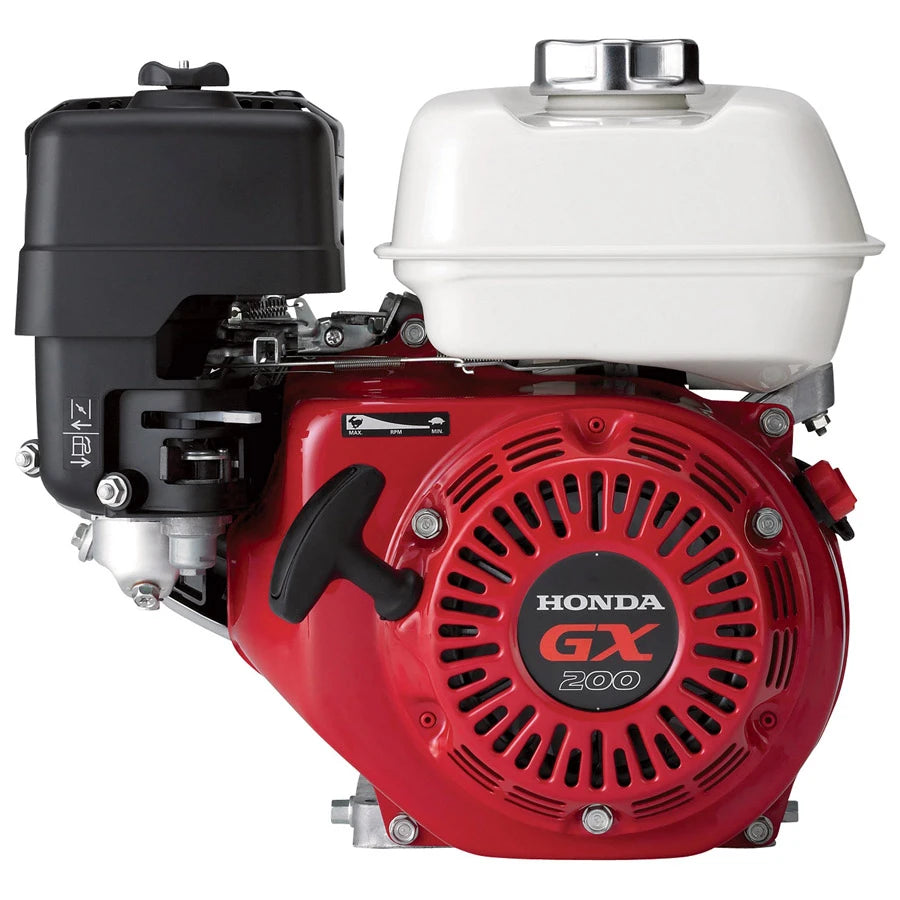

• Manual Recoil Start: Honda GX200UT2-QX2 – Traditional pull-start configuration, ideal for straightforward gas softwash and pressure washer builds without the need for an electric starting system.

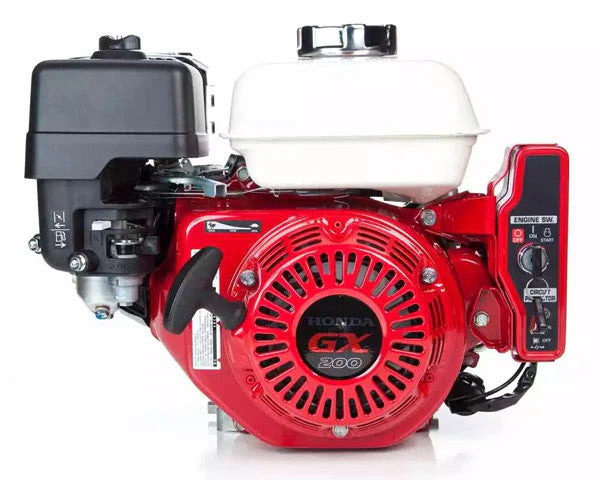

• Electric Start + Manual Recoil: Honda GX200UT2-QXE2 – Convenient electric starting with manual recoil backup, ideal for trailer-mounted systems, skid assemblies, and custom equipment builds where easier starting is preferred.

Important Notes

This listing is for the Honda GX200 gas engine only, in your selected starting configuration. Pumps, mounting brackets, pulleys, couplings, belts, batteries, and other equipment components are NOT INCLUDED.

The Honda GX200 is an excellent option for gas softwash system replacements, custom softwash builds, and smaller-GPM pressure washer applications. However, the engine must be properly matched to the pump's horsepower, RPM, and torque requirements. The GPM and PSI that a system can produce will depend on the pump and drive configuration selected.

The engine features a 3/4-inch keyed horizontal shaft, but shaft diameter alone does not guarantee compatibility with every pump or existing engine configuration. Verify shaft length, mounting dimensions, coupling requirements, and operating speed before ordering.

The electric-start model requires a compatible starting battery and associated electrical connections. Confirm battery and accessory requirements for your particular installation before purchasing.

Engine oil must be added and checked according to Honda's instructions before initial operation. Always follow the manufacturer's operating, maintenance, and safety recommendations.
